ホリゾン APC-48-SU 断裁機 コンピューター制御 油圧式断裁機 断裁幅480mm対応
プログラム断裁と背つぶし機能を備えた製本現場向け断裁機
ホリゾンの「APC-48-SU」は、断裁工程を効率化するコンピューター制御の油圧式断裁機です。断裁幅最大480mmに対応し、プログラム断裁機能や背つぶし機能を搭載。液晶タッチパネルによる設定操作や、光でカット位置を示すカットライン照射機能により、作業内容を確認しながら断裁作業を行うことができます。製本や印刷物の仕上げ工程などで使用される断裁機です。
コンピューター制御によるプログラム断裁機能
99コース・35工程を記憶できるプログラム断裁機能を搭載。よく使用する断裁工程や複数工程の作業を記憶させることで、設定作業の効率化と作業ミスの軽減に役立ちます。
油圧式プレスによる断裁方式
プレス方式に油圧式を採用。最大断裁幅480mm、断裁高さ最大80mmに対応し、印刷物や製本物の断裁作業に使用されます。

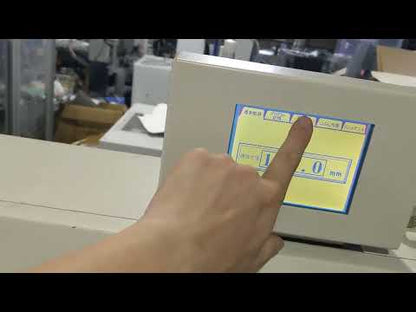

カットライン照射とタッチパネル操作
紙をセットすると光のラインで断裁位置を確認できるカットライン照射機能を搭載。設定操作は液晶タッチパネルで行うため、断裁サイズや工程の設定を画面上で確認しながら操作できます。さらにプレッシャーのみを下降させる「つぶし機能」により、中綴じ製本の背つぶし作業にも対応します。
断裁幅:最大480mm
断裁高さ(厚み):最大80mm(プレス補助版使用時75mm)
断裁奥行:最大480mm / 最小45mm(プレス補助版使用時55mm)
突出し量:50mm固定
刃物の長さ:最大610mm
プレス方式:油圧式
記憶容量:99コース / 35工程
断裁速度:約4秒
電源情報(V・Hz・A):AC200V・50/60Hz
機械の本体寸法(WDH):1160 × 900 × 1600 mm
機械の重量(kg):470kg
Check the special notes
Check the special notes
Storage location: 群馬県
Adjustment status/shipping estimate: ご購入後 清掃・点検・調整作業あり[出荷目安 6~50日]
Sales format: 自社販売
Manufacturer: ホリゾン
Year: 2007年5月
Presence of instruction manual or reference material: PDFあり (取説 or 説明資料)
