Cutting rolls into sheets
A high-performance sheet cutter with easy blade replacement that requires no adjustment after replacement.

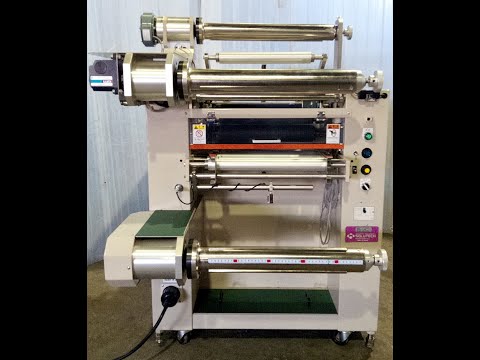

Machine Overview: The Soltec W-350 Sheet Cutter is a high-performance sheet cutter that can handle a variety of materials, including film, paper, metal foil, composite materials, and new materials. Its major feature is that the blade is easy to replace and no adjustment is required after replacement. With a proven track record, it also offers a wide range of options and is flexible in responding to customization requests.
Features:
- Easy blade replacement : The blade can be easily replaced and no adjustment is required after replacement. This simplifies maintenance and improves work efficiency.
- Outstanding sharpness : The unique shear cutting method and zero clearance gap design ensure a consistently sharp cutting edge. It can accurately cut a wide range of materials, from thin materials such as film and paper to metal foil and new materials.
-
A wide range of options and proven performance : Many options are available, including slit cutting, lamination cutting, and mark sensor cutting. Customization is possible to meet specific needs, such as processing large raw materials and laminating after cutting.
Specification information:
- Work width: Maximum effective product width 350mm
- Maximum raw material diameter: Φ400mm
- Cutting dimensions: 0.1mm~9999.9mm
- Number of copies: 1 to 9999
- Feed speed: 6m-60m/min (10-step setting)
- Safety devices: Safety cover in front of feed roll (with limit switch), safety cover after cutter (with limit switch), emergency stop button x 2
- Sensors: Paper end sensor, cut positioning sensor, reflective sensors x 2, color mark sensor x 1
- Power system: Dimension feed motor pulse motor (maximum excitation static torque 6.3N・m) × 1, tension roll drive powder clutch 0.2kg・m × 1, cutter motor C/B motor 90W × 1, unwinding brake powder brake 1.2kg・m × 2, winding motor torque motor 90W × 1, accumulation table drive motor inverter motor 0.1kw × 1, conveyor drive motor BX motor 120W × 1, accumulation blower blower 70W × 1
- Feed rolls: Feed roll Φ63mm L350mm urethane rubber roll, Feed nip roll Φ54mm L350mm urethane rubber roll, Tension roll Φ63mm L350mm urethane rubber roll, Tension nip roll Φ55mm L350mm urethane rubber roll
- Guide roll: Φ40mm L400mm aluminum roll x 4
- Cutting blade: W-350 sheet cutter upper blade and lower blade (blade length 390 mm) x 1 each, upper blade x 5, upper round blade... outer diameter 75 mm, inner diameter 45 mm, thickness 0.6 mm, upper blade holder... outer diameter 60 mm, inner diameter 32 mm, thickness 12 mm, lower blade x 5, lower round blade... outer diameter 60 mm, inner diameter 35 mm, thickness 12 mm
- Static elimination device: Ion discharge static elimination bar (ionizer) x 1 location
Power supply information (V/Hz/A): Three-phase 200V (breaker rated current 15A)

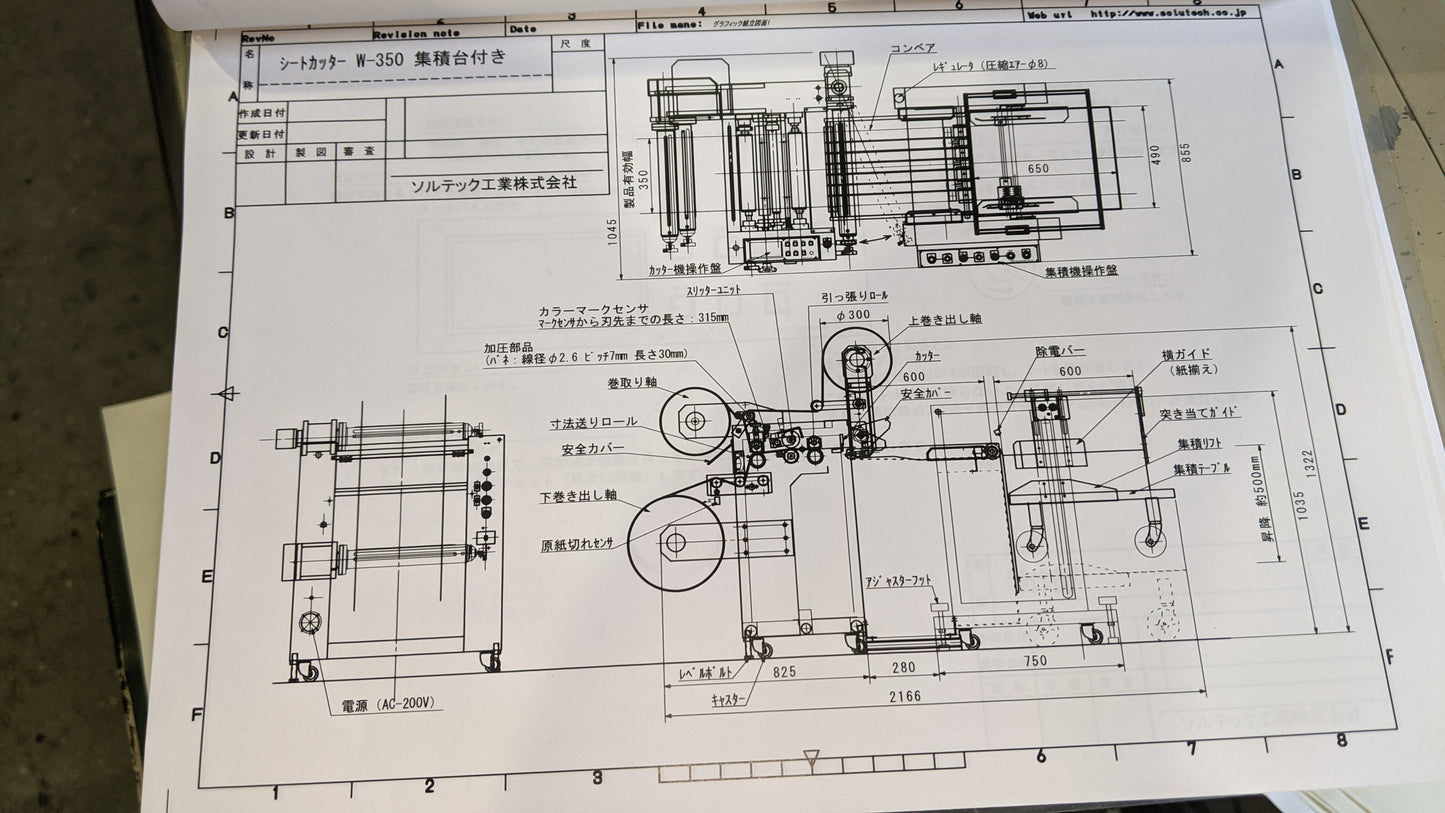

Machine dimensions (WDH): 217 x 100 x 133.5 cm
Check the special notes
Check the special notes
Storage location: Gunma Prefecture
Adjustment status/shipping estimate: After purchase, cleaning, inspection, and adjustment will be required. [Estimated shipping time: 6-50 days]
Sales format: In-house sales
Manufacturer: Soltec
Year: 2015
Presence of instruction manual or reference material: PDF available (instruction manual or explanatory materials)
